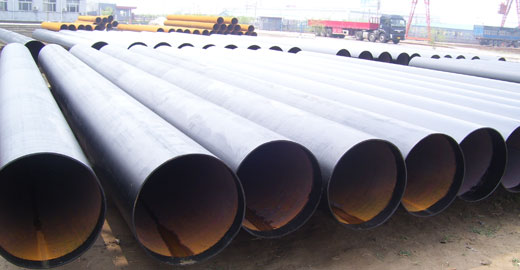

Longitudinal Submerged-Arc Welded Steel Pipe
Process: LSAW - UO(UOE), RB(RBE), JCO(JCOE, COE); DSAW - Double Submerged Arc Welded
Usage: Used for low pressure liquid delivery, such as water, gas, and oil.
Standard: API 5L, API 5CT, ASTM 53, EN10217, DIN 2458. IS 3589, GB/T3091, GB/T9711
Certificate: API 5L PSL1 / PSL2, API 5CT
Out Diameter: 323.9mm -1820mm(12''-72'')
Wall Thickness: 5.0 - 50mm
Length: 6 – 12m
Steel Grade:
API 5L: GR B, X42, X46, X56, X60, X65, X70 ASTM A53: GR A, GR B, GR C EN: S275, S275JR, S355JRH, S355J2H GB: Q195, Q215, Q235, Q345, L175, L210, L245, L320, L360- L555
Surface: Fusion bond Epoxy coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil coating as per customer’s requirement
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Bending Test, Blow Test, Impact Test), Exterior Size Inspection, Hydrostatic Test, X-ray Test.
Mill Test Certificate: EN 10204 / 3.1B
|
Standard
|
Grade
|
OD
|
Thickness
|
Length
|
Main Usage
|
|
ASTM A53
|
GR.A, GR.B
|
168-1820mm
|
5-50mm
|
3-18M
|
Pipe, Steel, Black and Hot-Dipped, Zinc-Coated
Welded and Seamless
|
Threeway Steel is known as a professional supplier engaged in manufacturing and distributing a wide range of steel pipe, and our headquarter located the central part of China – Hunan and six associated factories throughout China.
